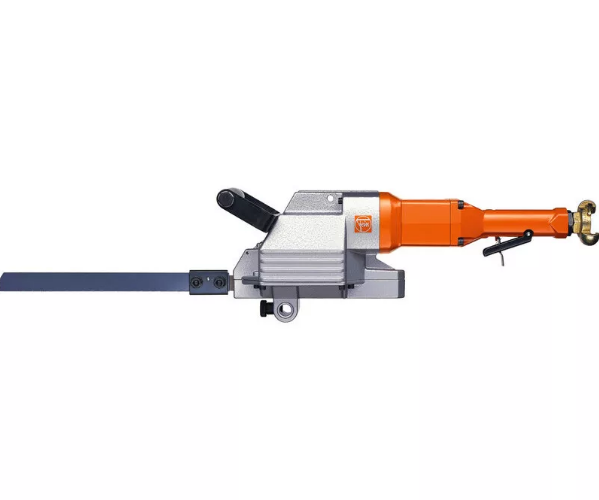

Fein STS 325
Details
Ideally suited for trimming pipes and shaped section made of steel, cast-iron, autoclaved aerated concrete and plastics.
Clamp and feed device available for proles and pipes from Ø 80 mm to Ø 400 mm.
Adjustable clamping devices permit mitre cuts up to 45° as well.
Clamp and feed device.
Adjustable clamping fixtures.
* With chain extension.
Technical Data
Operating Pressure - 6bar
Air Consumption - 1.5 m³/min
Output - 1,100 Watts
Strokes - 330rpm
Stoke of Blade - 60mm
Pipes up to Ø - 440 * mm
Profiles up to W x H - 290x500 mm
Weight according to EPTA - 7.20kg
Vibration and Sound Emission Values
Sound Pressure level LpA - 81dB
Uncertainty of measured value KpA - 3dB
Sound power level LWA - 92 dB
Uncertainty of measured value KWA - 3dB
Sound Peak Value LpC peak - 102dB
Uncertainty of measured value KpCpeak - 3dB
Vibration Value 1 αhv 3way - αh,D 7,1 m/s²
Uncertainty of measured value Kα - 1,5 m/s²
